    How object authorizations work in NextTables

    In contrast to analysis authorizations, which control access to data content, object authorizations provide access protection on an Object level, like Table or InfoProvider. Object authorizations are required by all users to be able to access certain tables or InfoProviders at all.

    Note, however, that only the general access to tables or InfoProviders is covered. There is no access restriction to the data contents of these providers. Access to the data content is controlled via analysis authorizations. These authorizations allow you to provide certain data contents for users. Thus a fine-grained assignment of authorizations is possible.

    Imagine an InfoProvider with information about different company codes. The object authorizations determine whether you can access the InfoProvider at all. The analysis authorizations allow you to view information about a specific company code. For example, you may be allowed to see the sales of company code A, but not of company code B.

    Object authorizations in SAP BW

    Object authorizations provide access protection at the InfoProvider level. These authorizations are required by all users, for example to call queries and model data. This involves general access to InfoProviders. There is no access restriction to the data contents of these objects.

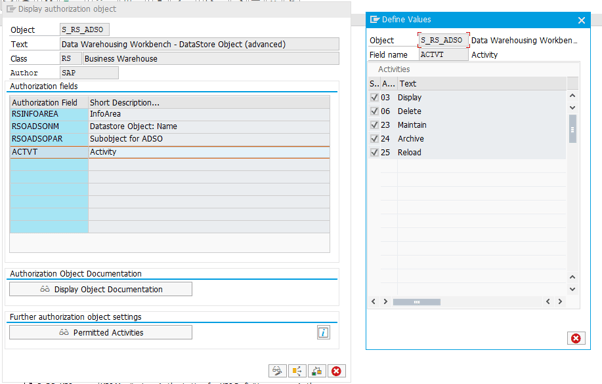

    The object authorizations are modeled in SAP BW using authorization objects. These are used to control access. For example, the authorization object S_RS_ADSO is required to work with contents of an ADSO.

    NT_KB_Object_AUTH_01

    In addition, the analysis authorizations are often required, because usually at least the InfoProvider itself is authorization relevant via the InfoObject 0TCAIPROV.

    In the next chapter you will find  recommendations for the standard SAP object authorizations.

    Recommendations for standard Object Authorizations

    ADSO

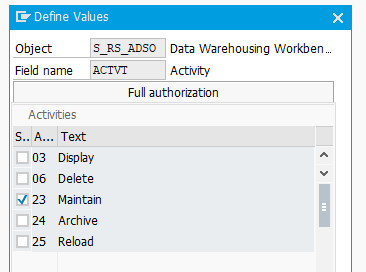

    If you work with an ADSO, you need the object authorizations via the object S_RS_ADSO. In addition to the Name of the DataStore object, you must also specify the relevant InfoArea. You can use the Activity field to restrict the functions that a user can execute. In order to change the contents of the ADSO, the user needs the activity 23 Maintain.

    NT_KB_Object_AUTH_02

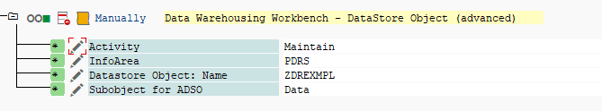

    In the Subobject for ADSO field you should select DATA to access data.

    NT_KB_Object_AUTH_03

    InfoObject

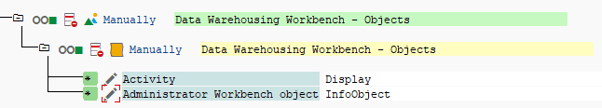

    If you want to maintain InfoObjects in addition to ADSOs, you need the authorization object S_RS_ADMWB to be able to display InfoObjects. Please make sure the Display activity is set for the administrator workbench object InfoObject.NT_KB_Object_AUTH_04

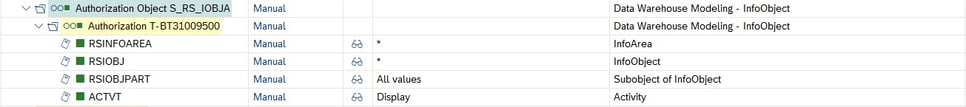

    In BW4/HANA Object S_RS_ADMWB is not needed anymore. Access to the respective InfoObject is granted via the authorization object S_RS_IOBJA.

    NT_KB_AuthorizationObjectS_RS_IOBJA

    If you are still using InfoObject Catalogs, you need to use the Auth Object S_RS_IOBJ instead.

    DDIC Table

    No additional object authorizations are necessary. The user should be able to access the table via NextTables authorization /NLY/TBLS though. This authorization object is explained in the next chapter.

    Please note: if your InfoProvider does not contain any authorization relevant InfoObjects, please deactivate the Analysis Authorization Check in the settings. Otherwise, you would be required to set up analysis authorization for the InfoProvider itself, since it is authorization relevant via the InfoObject 0TCAIPROV.



    Object Authorizations for NextTables

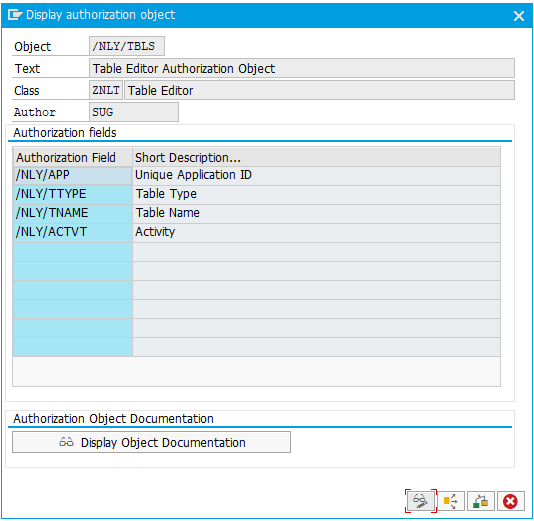

    Once you install NextTables, a new authorization object is created - /NLY/TBLS. This authorization object is exclusively related to the use of NextTables. All object authorizations for NextTables are covered by this object.

    This authorization object covers certain access types via the respective authorization field. Four authorization fields are defined:

    • /NLY/APP - Unique Application ID
    • /NLY/TTYPE - Table Type
    • /NLY/TNAME - Table Name
    • /NLY/ACTVT - Activity

    NT_KB_Object_AUTH_06

    Under /NLY/APP you enter the name of the application that you created during setup.

    In the authorization field /NLY/TTYPE you define the table type. You can choose between the following entries:

    • DDIC    Data Dictionary Table
    • DSO DSO (Advanced or Classic)
    • CUSTOM Custom (e.g. Views, etc.)
    • IOBJ_ATT    InfoObject Attribute
    • IOBJ_TXT    InfoObject Text
    • ALIASTABLE   Alias Table

    In the /NLY/TNAME field, enter the name of the table to be accessed.

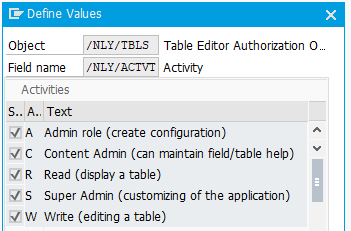

    With the authorization field /NLY/ACTVT you can control which activities are allowed when accessing the table. The following options are available:

    • R     Read
    • W     Write
    • A      Admin role (create configuration)
    • C     Content Admin role
    • S      Super Admin (can set Customizing of the NextTables application)

    NT_KB_Object_AUTH_07

    The activity R allows to display a table, while the activity W allows to edit (insert/edit/delete) a table. Users with activity R are therefore only allowed to read the tables, whereas users with activity W are allowed to edit the tables.

    There are also three admin roles for the administration of NextTables. Super-Admin (S), Config-Admin (A) and Content Admin (C). The roles will be explained further below. (<- hier section nach unten verlinken).

    Recommendations for NextTables Object Authorizations

    Using the authorization fields described you can define your authorization setup for each application in a very flexible way. Please take into consideration that the Read permission (ACTVT ‘R’) must be always included for all users for the respective Application that users will need to have access to. That is because the menu application is based on the Read permissions of the respective user. Therefore, if no Read permission for any Application is granted the user won’t be able to see any of the applications developed within NextTables.

    Furthermore, it is also recommended to set up an Config Admin user, at least in the development system. This user should have full permissions.

    On the production system, however, all ad-hoc changes to Configurations should be typically avoided. Therefore, this role should only be assigned to a limited number of people.

    Examples regarding Authorization Setup

    Finally, we would like to illustrate the authorization concept with a few examples.

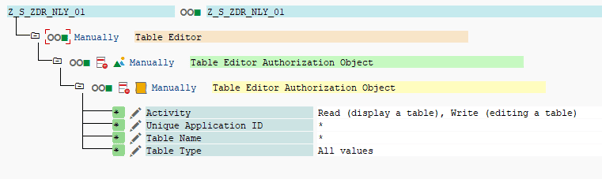

    Suppose you want to create an internal role for operation control. The user with this role should be able to see and edit all tables in the production environment. But he should not be able to include new tables or change the configuration.

    To achieve this goal you can proceed as follows. Create two different roles: an Operation Control role and an Admin role. The Operation Control role is assigned on all systems and should be defined as follows:

    Unique Application  ID *
    Table Name  *
    Table Type *
    Activity    R (read) and W (write) ,  S (Super Admin), possibly C (Content Admin)



     NT_KB_Object_AUTH_08

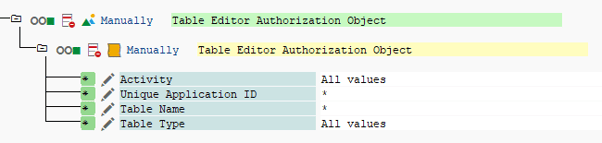

    The admin role, on the other hand, is only assigned on the development system and is set as follows:

    Unique Application  ID *
    Table Name *
    Table Type *
    Activity               * (All Values)



    NT_KB_Object_AUTH_09

    With this approach you will achieve the following. You will be able to create, edit, import and delete data within the tables on both systems. Also you will be able to configure NextTables like the themes or the Welcome Page, since neither of them can be transported.

    It will be checked whether the user has authorization for administration (activity A) of the respective application. The user can create, save and adjust his own templates. To save the created template globally and thus make it available to all users, activity C (Content Admin) is also required. However, read access to the configuration tables is still available for persons with the operational control role.

    In the development system, users have additional permissions via the admin role, e.g. to be able to include and new and configure existing tables, menu entries or apps.

    Consider also the following examples:

    Person /NLY/APP /NLY/ACTVT What can the user do based on these authorizations ?
    Paul SALES Read, Write Can read & write configured tables of app SALES
    Mary SALES Read Can read configured tables of app SALES
    John SALES

    Read,
    Content Admin

    Can read data in tables within the app SALES. Can add and edit documentations and global templates within the app SALES.
    Steve SALES

    Read,
    Config Admin

    Can read data in tables within the app SALES. Can also add new edit existing table configurations and menu entries within the SALES app in the config / menu entry wizards.
    Joe SALES

    Read, Write,
    Config Admin

    Can read and write data in tables within the app SALES. Can also edit existing table configurations and menu entries within the SALES app in the config / menu entry wizards.
    Sue *

    Read, Write,
    Config Admin,
    Content Admin,
    Super Admin

    Can read and write within all tables. Can also add new and edit existing tables, applications and menu entries without any restrictions. Can add and edit documentations and templates. Can change overall NextTables settings like additional languages, theme colors or the welcome page.



    In the example we have assumed that the employees always have the appropriate authorisation (S_RS_ADSO / S_RS_ADMWB).

    NextTables version 9 and later provides a configuration and menu wizard. We strongly recommend using the wizards. The process is guided, quick, easy and less error prone. Please have a look at “How to configure NextTables” for more information.



    Admin Role Overview



    Super Admin (S)

    Config Admin (A)

    Content Admin (C)

    Global NextTables Settings like:

    Design
    Application Properties
    Welcome Page

    Yes

    No

    No

    Configuration like:

    Create and configure tables & menus
    Create pages

    No

    Yes

    No

    Documentation like:

    Create table, field or site documentation
    Edit templates and save global templates

    No

    No

    Yes



    Recommendations for organizing Applications

    While the tables integrated in NextTables increase rapidly, the overview in the menu decreases significantly. A coherent structure for the application and menu entries is necessary to keep track of 100 or more entries.

    It is possible to stack applications and keep the individual authorizations of each stacked application.

    Example: The controlling department maintains the budget for Personal and Material Costs. The responsible person from the controlling department should be able to see and maintain both tables. The users of the d

    epartment Human Resource and Purchasing should be able to see and maintain only the necessary tables.

    Menu Structure:

    Menu Item 1

    Menu Item 2

    Tables

    APP

    Controlling



    None

    APP_CO



    Personnel Costs

    PC_INPUT, PC_BUDGET, Info Page

    APP_P_COSTS



    Material Costs

    MC_INPUT, MC_BUDGET

    APP_M_COSTS



    Authorizations:

    Menu Item 1

    Menu Item 2

    Tables

    APP

    Controlling



    None

    APP_CO



    Personnel Costs

    PC_INPUT, PC_BUDGET, Info Page

    APP_P_COSTS



    Material Costs

    MC_INPUT, MC_BUDGET

    APP_M_COSTS

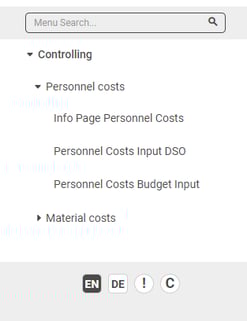

    Scenario 1: User sees full menu structure

    NT_KB_Object_AUTH_10

    A controlling user could have the Roles CO_TOP, CO_PC, CO_MC and would see all three applications.

    A HR User could have the roles CO_TOP and CO_PC and would be able to see only the Menu Entry for Controlling and Personnel Costs and the tables within the menus.


    Scenario 2: User sees only his menu

    NT_KB_Object_AUTH_11

    The controlling user could have the Roles CO_TOP, CO_PC, CO_MC and would see all three applications like in scenario 1.

    The HR User would only get the role CO_PC and therefore only the Personnel costs menu would be visible.

    With this neat trick you can mix and match applications and authorizations for different user groups. Since the activities read, write, content and config admin are always bound to an application it is possible to have only read access to App_A,  read and write access to App_B and be content admin of APP_C. The menu structure helps to organize the applications in Next tables, but it does not influence the authorizations.


    Which License is needed for this feature Professional  | Enterprise
